Scissor Lift & Boom Lift Rentals

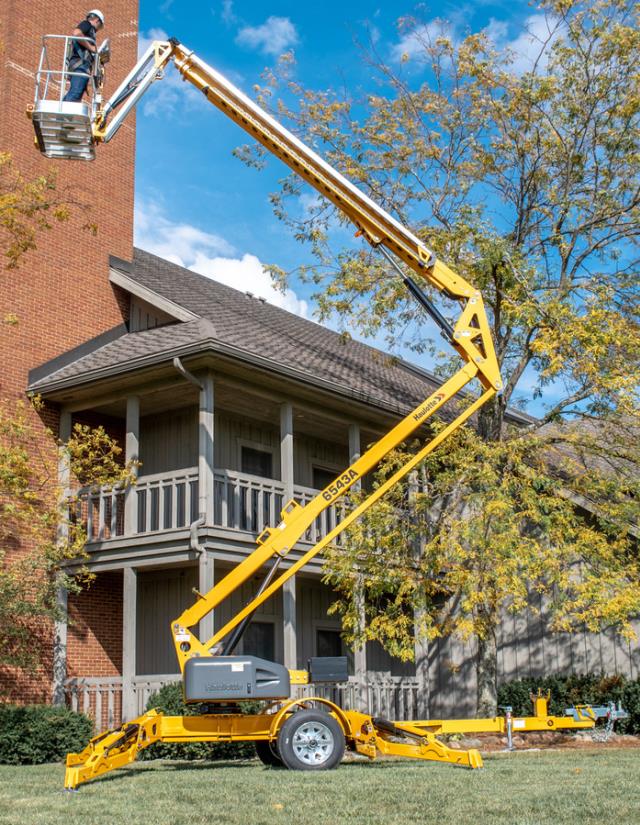

65 ft. Towable Boom Lift


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: Bil-Jax

4 Hour: $350.00

Daily: $450.00

Weekly: $1,350.00

Monthly: $4,500.00

Quantity: for a period of
4 hour(s) day(s) week(s) month(s)

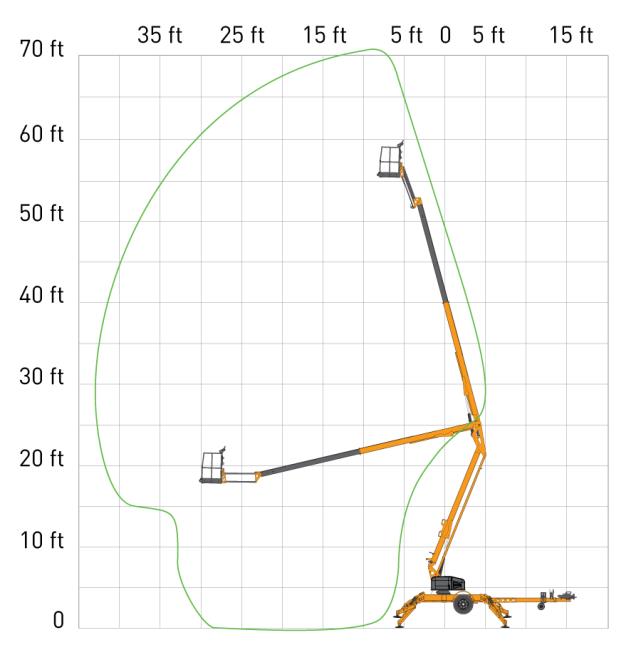

Working Height (max) 71 ft ( 21.6 m)
Platform / Max Platform Height 65 ft ( 19.8 m)
Maximum Horizontal Outreach (from centerline) 43 ft ( 13.1 m)
Horizontal Outreach (from edge of outriggers / foot-pad) 37 ft ( 11.3 m)
Up-and-Over / Clearance Height 24 ft 2 in ( 7.36 m)
Platform (Basket) Capacity 500 lb ( 227 kg)
Platform Size (Basket) 4 ft 1 in 2 ft 9 in ( 1.25 m 0.84 m)
Boom / Jib Articulated/telescopic boom with 4 ft 3 in jib; jib vertical articulation ~ +70 / 80 ( 170 total)
Turntable Rotation 350 non-continuous
Tow/Transport Dimensions (stowed) Length: ~ 24 ft; Width: ~ 5 ft 11 in; Height: ~ 7 ft Overall / Widest Point (when setup) Up to 14 ft 8 in 15 ft, depending on outrigger spread.
Operating / Machine Weight (no options) ~ 7,700 lb ( 3,492 kg)
Tire Specification ST 215/75R 17.5 tires
Power Source 24 V DC, battery powered (4 6 V, 245 Ah batteries)
Tow Speed Rating Up to 65 mph (when towing)
Leveling / Setup Hydraulic outriggers + self-leveling system; can operate on slopes up to 12.5

Also check the following item(s) related to the above:

* Prices are subject to change.

* Please call us with any questions about our 65 ft. towable boom lift in Chicagoland and the surrounding areas.
